As a premier manufacturer and supplier of heavy-duty construction machinery, we engineered this reinforced cage welding machine to fundamentally elevate your structural fabrication capabilities. Designed to meet the rigorous demands of modern infrastructure projects, this equipment merges high-capacity output with uncompromising precision.
Direct-from-manufacturer sourcing ensures optimal procurement value and technical accountability.
Integrated digital intellectual control streamlines complex fabrication sequences.
Engineered with robust, new-style bearing supports to guarantee long-term structural integrity.
The construction landscape demands unwavering structural integrity, and that foundation begins with flawlessly fabricated reinforcement frameworks. This numerical control steel cage welder is engineered to transform raw steel into rigid, perfectly aligned cylindrical cages with absolute metallurgical consistency. When you engage the control panel, the digital interface responds with immediate tactile precision, initiating a welding sequence characterized by the smooth, quiet hum of a perfectly tensioned belt transmission. Unlike older models that shudder and stall under heavy loads, this machinery glides through the fabrication process, utilizing a shortened conductive circuit that delivers intense, focused thermal energy exactly where the steel intersects. The result is a seamless fusion of metal, free from the brittle joints or misaligned spacings that compromise structural safety. By integrating the main engine, the agile trolley, and the material plate into a unified electronic ecosystem, the equipment eliminates the disjointed workflows that plague traditional fabrication yards. Every rotation of the heavy-duty gear-driven material plate feels deliberate and controlled, ensuring that even the most massive steel configurations are handled with industrial grace. This is not merely a piece of equipment; it is a comprehensive fabrication solution designed to accelerate project timelines, reduce material waste, and deliver a final product that meets the most stringent architectural standards.
| Parameter Key | Specification Value |
|---|---|
| Product Name | Reinforced Cage Welding Machine / Numerical Control Steel Cage Welder |
| Control System | CNC (Numerical Control) / Digital Intellectual Control with Man-machine interaction surface |
| Preset Programs | 48 types of welding cage parameters presetting (Direct choice, free of adjustment) |
| Transmission System | Gearing transmission (Material plate) & Belt transmission (Main engine) |
| Bearing Type | New style big bearing support (Compact structure) |

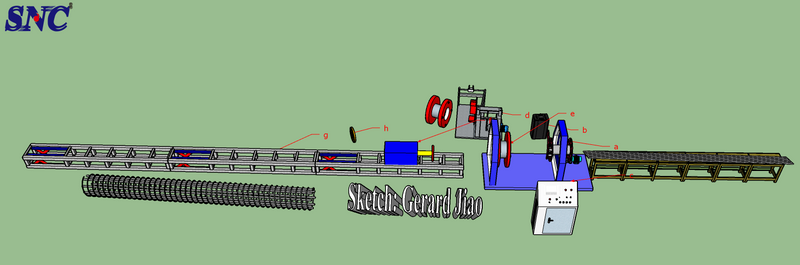

| Core Components | Integrated main engine, small trolley, material plate electronic control |
| Cage Diameter Range | Customizable (Industry standard ref: Φ200mm - Φ3600mm) |
| Cage Length | Customizable (Industry standard ref: 4m - 15m) |
| Voltage | 380V / 50Hz (Industry standard reference) |
| Special Function | Free pause during welding, position adjustment without recalculating quota |
Our engineering team focused on resolving the most persistent bottlenecks in steel fabrication. By prioritizing intelligent control and mechanical harmony, this equipment directly improves your daily operational output.
Uninterrupted Workflow Control: Experience the freedom to pause the welding process instantly. Operators can adjust the main engine, material plate, and trolley positions simultaneously without the burden of recalculating quotas upon restart.
Optimized Energy Transfer: The shortened conductive circuit concentrates power directly at the weld point, enhancing conductive energy while minimizing peripheral heat loss and component stress.
Harmonized Transmission Dynamics: The main engine utilizes a premium belt transmission, ensuring a whisper-quiet, vibration-free operation that reduces operator fatigue and minimizes mechanical wear.
Turnkey Facility Integration: Beyond supplying the machinery, we provide comprehensive design services to assist clients in establishing entirely new pole and pile fabrication facilities from the ground up.
Achieving a near-perfect yield rate is critical for large-scale procurement and project management. This equipment ensures that every single cage meets exact architectural specifications without deviation.
Intuitive Digital Interface: The man-machine interaction surface provides crystal-clear visual feedback, allowing operators to monitor structural dimensions in real-time.
Instant Parameter Access: With 48 distinct types of welding cage parameters pre-loaded into the system, operators can make direct selections without engaging in time-consuming manual adjustments.
Flawless Execution: Servo-driven precision guarantees exact steel spacing and cage diameters, entirely eliminating the risk of human error, structural misalignment, or missed welds.
Capacity dictates profitability. This machine is built to maximize throughput by automating the most labor-intensive aspects of the fabrication cycle, keeping your production lines moving relentlessly.
Seamless Continuation: The ability to freely pause, adjust the trolley or material plate, and immediately resume without recalculating quotas drastically cuts down on idle machine time.
Integrated Electronic Ecosystem: The centralized electronic control synchronizes the main engine and the small trolley, ensuring smooth, rapid material handling and automated counting.
High-Speed Output: The combination of gear-driven material plates and swift CNC processing allows for rapid completion of complex cages, easily keeping pace with aggressive project schedules.
Heavy machinery must offer a reliable return on investment through years of punishing use. We selected materials and structural designs specifically to withstand the harsh environment of a concrete and steel facility.
Advanced Bearing Architecture: Both the cage welding tank and the material plate utilize a new style of large bearing support, creating a highly compact yet incredibly resilient outline.
Acoustic and Mechanical Harmony: The integration of a belt-driven main engine ensures the machine runs quietly and smoothly, reducing the micro-vibrations that typically degrade electronic components over time.
Thermal Management: By shortening the conductive circuit, the machine not only improves weld penetration but also significantly reduces the thermal load on internal electrical pathways, extending the lifespan of core components.
A diverse project portfolio requires adaptable machinery. This welder is engineered to pivot seamlessly between different infrastructural demands, ensuring you never have to turn down a contract due to equipment limitations.
Broad Dimensional Range: Fully customizable to handle cage diameters from Φ200mm up to massive Φ3600mm structures, and lengths spanning from 4m to 15m.
Multi-Industry Application: Perfectly suited for fabricating reinforcement for tubular piles, utility poles, cement pipes, and deep bridge foundations.
Dynamic Diameter Tracking: The machine adjusts to varying steel specifications and diameter changes with tight tracking, ensuring structural integrity regardless of the specific project blueprint.
Protecting your bottom line means optimizing resource allocation. This system is designed to drastically reduce both the human capital required and the raw materials wasted during standard operations.
Lean Workforce Requirements: The high degree of automation means that a complete production cycle can be managed effectively by just 1 to 2 operators, freeing up your workforce for other critical tasks.
Zero Material Waste: Pinpoint CNC accuracy ensures perfect spacing and eliminates the need for redundant overlapping or corrective re-welding, stretching your raw steel inventory further.
Energy Efficiency: The enhanced conductive energy system utilizes power more effectively, reducing the electrical draw required to achieve deep, permanent welds.
Complex machinery shouldn't require a team of specialized engineers to keep it running. We designed this welder with straightforward maintenance protocols and an accessible learning curve.
To ensure peak performance, operators simply need to perform a brief, intuitive daily check before starting the CNC steel cage welder. The main contents of this routine inspection include:
Verifying that the control power switch is in the off state prior to inspection.
Confirming that all electrical lines and communication cables are connected in a normal, secure state.
Conducting a visual sweep to carefully check whether there is any oil leakage near the hydraulic or transmission zones.
Ensuring that all structural bolts and nuts remain tightly secured against operational vibrations.
Checking the electrical cabinet to verify there is no excessive dust accumulation that could impede cooling.
Partnering with a dedicated manufacturer means securing a competitive edge in your procurement strategy. We understand that equipment downtime translates directly to lost revenue, which is why our engineering prioritizes resilience, rapid deployment, and continuous support.
Direct Source Advantage: Engaging directly with the manufacturing facility ensures transparent communication, faster lead times, and pricing free from intermediary markups.
Holistic Project Support: We do not just ship machinery; we offer one-stop services, including comprehensive layout and workflow design for clients building new pole and pile factories.
Proven Reliability: Every machine is subjected to rigorous pre-shipment testing to guarantee that the digital controls and mechanical drives perform flawlessly under maximum load conditions.
The system features a man-machine interaction surface pre-loaded with 48 distinct welding parameters. This allows the operator to directly select the required output profile without engaging in complex manual coding or mechanical adjustments, ensuring immediate and accurate production.
The machine is designed for real-world operational flexibility. The welding process can be paused freely at any moment. Operators can adjust the position of the main engine, material plate, and small trolley simultaneously. Upon restarting, the system instantly resumes without the need to recalculate the previous or subsequent quotas.
Maintenance is highly straightforward. Every day before starting, operators should ensure the power switch is off, check all line connections, inspect for any signs of oil leakage, tighten any loose bolts or nuts, and ensure the electrical cabinet is free from excessive dust. This simple routine prevents long-term wear and tear.
The acoustic and mechanical stability is achieved through a dual-transmission approach. The main engine utilizes a high-quality belt transmission to absorb shock and reduce noise, while the material plate is driven by precise gearing and supported by a new style of large bearings, creating a compact and vibration-resistant structure.
Absolutely. The equipment is highly customizable, capable of producing cages with diameters ranging from Φ200mm to Φ3600mm and lengths from 4m to 15m. This makes it exceptionally versatile for everything from standard utility poles to massive bridge foundation piles.
